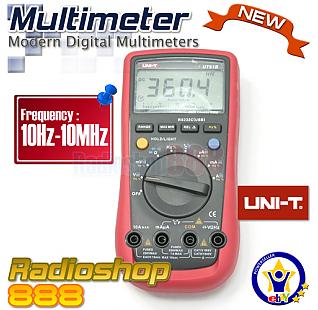

UNI-T UT61B Modern Digital Multimeters

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
DC Voltage Measurement	40mV 400mV 4V/40V/400V 1000V	(0.8%+3) (0.8%+3) (0.5%+1) (1%+3)
AC Voltage Measurement	40mV 400mV 4V/40V/400V 750V	(1.2%+5) (1.2%+5) (1%+3) (1.2%+5)
AC Current Measurement	400.0mA/4000mA 40.00mA/400.0mA 4.000A/10.00A	(1.2%+5) (1.5%+5) (2%+5)
DC Current Measurement	400.0mA/4000mA 40.00mA/400.0mA 4.000A/10.00A	(1%+2) (1.2%+3) (1.5%+3)
Resistance Measurement	400.0W 4.000kW/40.00kW/400.0kW 4.000MW 40.00MW	(1.2%+2) (1%+2) (1.2%+2) (1.5%+2)
Capacitance Measurement	40.00nF 400.0nF/4.000mF/40.00mF 400.0mF 4000mF	(3%+5) (3%+5) (4%+5) O
Frequency	10Hz-10MHz	(0.1%+4)
Frequency Response	0	45~400Hz
Duty Cycle	0.1%~99.9%
Temperature Measurement(oC)	-40oC~-20oC >-20oC~0oC >0oC~100oC >100oC~1000oC	-(8%+5) (1.2%+4) (1.2%+3) (2.5%+2)
Temperature Measurement(oF)	-40oF~-4oF >-4oF~32oF >32oF~212oF >212oF~1832oF	-(8%+6) (1.2%+5) (1.2%+4) (2.5%+3)
Special Functions
Manual Ranging
Diode
EF Function
Audion	1000ß
Continuity Buzzer
Data Hold
Max/Min Mode
Display Backlight
REL
Sleep Mode	Around 15 Minutes
Analogue Bar Graph	41
RS232(USB)
Fuse
Input Impedance for DC Voltage Measurement	Around 10MW
Low Battery Display	<7.5V

GENERAL CHARACTERISTICS

Power	9V Battery (6F22) x 1
LCD Size	65 x 43mm
Product Colour	Red and Grey
Product Net Weight	370g
Product Size	180 x 87 x 47mm
Standard Accessories	Battery, Test Lead, English Manual, Socket Adaptor, RS232,Software, Point Contact K-Type Temperature Probe
Optional Accessories	USB
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	20 pcs
Standard Carton Measurement	465 x 335 x 345mm (0.054 CBM Per Standard Carton)
Standard Carton Gross Weight	12kg
