  ITEM DETAILS

Item ID: UV-5RD_S021A

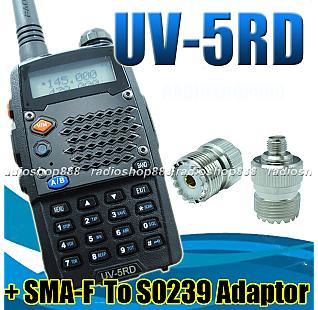

Item Name:  BAOFENG UV-5RD Dual Band UHF/VHF Radio + S021A

Member Price: USD 49.50 * Shipping Cost Included
Currency: USD
Ships to: Worldwide

  Description


NEW BAOFENG UV-5RD
136-174/400-480Mhz
BAOFENG UV-5R The transcevier is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability

1X S021A SMA -Female to S0239 Adaptor

Brand New


This is a SMA Female to SO239 UHF Femal adaptor. 100% new, factory packed and never been used.

It is made of nickel plated brass with gold plated contacts. High quality with low loss.
This adapter fits most of the hand held radios. It has HIGH sensitivity and wouldn't affect the power of your radio.





VHF/ UHF  DUAL-BAND TWO WAY RADIO

  • Frequency Range: 136-174 / 400-480MHz
  • Dual-Band Display, Dual Freq. Display, Dual-Standby
  • Output Power: 4 /1Watts
  • 128 Channels
  • 50 CTCSS and 104 CDCSS
  • Built-in VOX Function
  • 1750Hz Brust Tone
  • FM Radio (65.0MHz-108.0MHz)
  • LED Flashlight
  • Large LCD Display
  • Hight /Low RF Power Switchable
  • 25KHz/12.5KHz Switchable
  • Emergency Alert
  • Low Battery Alert
  • Battery Saver
  • Time-out Timer
  • Keypad Lock
  • Monitor Channel
  • Channel Step: 2.5/5/6.25/10/12.5/25KHz
  • ROGER SET
■  Dual band, dual display, dual standby ■  A/B band independent operation
■  128 groups channels storage ■  Shortcut menu operation mode
■  VFO & Memory channels scan ■  Emergency Alarm
■  Tri-color background light selectable ■  0~9 grades VOX selectable
■  PTT & ANI ID ■  FM radio and 25 stations storage
■  Voice companding ■  CTCSS/DCS coder & tone searching
■   ■  PC programmable
■  Wide/Narrow Band(25kHz/12.5kHz) ■  Transmitter time-out timer(TOT)
■  High/Low TX power selectable ■  Busy channel lock-out(BCLO)

Specifications :

 Item number  UV-5RD

General

 Frequency Range
 65-108MHz (FM Receive only)
 136-174MHZ and 400-480HZ (TX/RX)
 Channel No.  128
 Frequency Stability  ±2.5ppm
 Antenna  High gain DualBand  antenna
 Antenna Impedance  50Ω
 Operating Voltage  DC 7.4V
 Mode of operation   Simple or semi-duplex
 DimensionW x H x D  100 x 52 x 32 mm
 Weight  250gincluding battery, antenna

Transmitter

 Output power  4W / 1W (Max 5W)
 Modulation Mode  16kΦF3E / 11kΦF3E
 Maximum deviation  <5kHz(Wide) / 2.5kHz(Narrow)
 Spurious Radiation  <7μW
 Adjacent Ch. power  ≤-65dB(Wide) / -60dB(Narrow)
 Pre-emphasis characteristics  6dB
 Current  ≤1.6A(5W)
 CTCSS/DCS deviation  0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
 Intermediation sensitivity  8-12mv
 Intermediation distortion  <10%


Package Include :


1 x UV-5RD (VHF136-174Mhz UHF 400-480Mhz)
1 x 7.4V 1800mah Li-ion Battery Pack
1 x Antenna 136-174/400-470Mhz
1 x S021A Adaptor
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )
(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
1 x PTT Earpiece for free
