  ITEM DETAILS

Item ID: UT15C

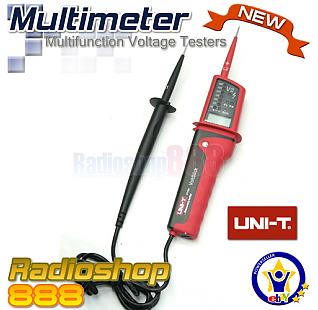

Item Name: UT15C DIGITAL MULTI-FUNCTIONAL VOLTSTICK VOLTAGE AC DC

Member Price: USD 28.80 * Shipping Cost Included
Currency: USD
Ships to: Worldwide

  Description


SPECIFICATIONS
Technical Functions/ Features UT15C
Voltage LED Steps (AC/D) 12V: between 0 to 12V LED will illuminate
24V: between 19V ± 2V LED will illuminate
50V: between 48V ± 6V LED will illuminate
120V: between 110V ± 20V LED will illuminate
230V: between 200V ± 20V LED will illuminate
400V: between 340V ± 30V LED will illuminate
690V: between 520V ± 30V LED will illuminate
Continuity Test Range 0 to 100kΩ. The continuity LED will illuminate
and buzzer will sound.
Phase Rotation Test 50Hz to 60Hz
Range Selection Automatic
Polarity Detection Positive & Negative
Low Battery Display Short circuit two leads, LED and beeper do not on that means
the battery is low
Torch
Single Lead (L2) Voltage
Detection
It is intended only as a quick check. 100V to 690V;
50Hz to 400Hz
Short Circuit Detection
LCD display (AC/DC) 24V to 690V: ±(3%+5)
GENERAL CHARACTERISTICS
Power 1.5V Battery (AAA) x 2
LCD Size UT15C - 23 x 12mm
Product Color Red and Grey
Product Net Weight 210g
Product Size 275 x 51 x 30mm
Standard Accessories Batteries, English Manual
Standard Individual Packing
Blister
Standard Quantity Per Carton 30pcs
Standard Carton Measurement 440 x 395 x 455mm (0.079CBM Per Standard Carton)
Standard Carton Gross Weight 17kg

*Available at Extra Cost
Specifications and other information are subject to change without further notice.
