  ITEM DETAILS

Item ID: TH-F5U+4-004K

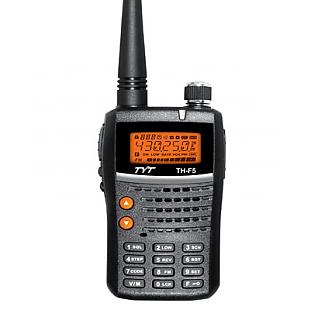

Item Name: TYT TH-F5 UHF 400-470Mhz Amateur two-way radio x 1set

Member Price: USD 72.90 * Shipping Cost Included
Currency: USD
Ships to: Worldwide

  Description




Frequency range : 400-470 MHz

Main functions :

128 channels
1750Hz tone
CTCSS/DCS
Scrambler
VOX

FM radio function, can store up to 25 radio stations
Transmission end tone
PC software programming
COMP function
Multi-functional keypad lock
Wide/narrow bandwidth selectable
Power-on password protection
Channel name editable



Technical parameters

Item number
TH-F5
General
Frequency Range
400-470 MHz
Channel No.
128
Frequency Stability
5PPM
Operating Voltage
-20~+50℃
Antenna
High gain antenna
Antenna Impedance
50Ω
Operating Voltage
DC 7.4V(Rechargeable Li-ion battery)
Mode of operation
Simple or semi-duplex
Dimensions(W×H×D)
98x53x30mm
Transmitter
Output power
4W/2W/1W
Modulation Mode
F3E
Maximum deviation
≤±5KHz
Remnant Modulation
∠60dB
Spurious Radiation
<7μW
Adjacent Ch. power
≥65dB/≥60db
Pre-emphasis characteristics
6db
Current
0.7A/1.0A/1.5A
CTCSS/DCS deviation
0.5kHZ+/-.01kHZ  03kHZ+/-0.1kHZ
Intermediation sensitivity
8-12mv
Intermediation distortion
<10%
 Receiver
RF Sensitivity
∠0.20μV(12dB SINAD)
Squelch Sensitivity
∠0.18μV
Audio power
≥400mW
Audio Distortion
≤10%
Intermediation
50dB
Standby Currency
46mA
Selectivity
≥65dB ≥60db
Spurious Rejection
≥65db
Blocking
≥85





PACKAGE INCLUDE :

1 x TYT TH-F5 (UHF 400-470Mhz)
1 x 7.4v 1500mah Li-ion Battery Pack
1 x UHFAntenna
1 x Belt Clip.
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )
* Correct Plug For Your Country *
1 x Earpiece



* This model without Scrambler
