  ITEM DETAILS

Item ID: TYT-800V+4-004K

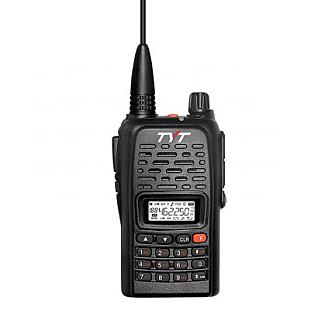

Item Name: TYT TYT-800 VHF 136-174Mhz Two-way radio x 1set

Member Price: USD 69.00 * Shipping Cost Included
Currency: USD
Ships to: Worldwide

  Description




TYT Model : TYT-800

Frequency range : 136-174 MHz




Main functions :

Output power: 5W
199 groups of memory channels
Channel spacing: 5, 10, 12.5,20,25,30, 50kHz optional

50 CTCSS code
VOX time-lapse function,
Designate communication
Multi channel scan or skip scan function
Voice prompt function
Emergency alarm
Selectable squelch /VOX grade setting

LCD display/ keypad direct frequency input
Transmit time limiter
Auto keypad lock
FM radio receiver function
Dimensions: 112X58X32mm
Weight:190g
Available appearance: Black, Red, Deep Green,





Technical parameters

Item number
TYT-800
General
Frequency Range
136-174mHz
Channel Capacity
199 channels
Channel Spacing
5kHz/6.25kHz/10kHz/ 12.5kHz/
20kHz/25kHz/30kHz/50kHz
Frequency Stability
±2.5ppm
Operating Temperature
-25~+60℃
Antenna Impedance
50Ω
Operating Voltage
7.2V
Dimensions(W×H×D)
115x 56x 30mm
Weight
190g(Include battery & antenna)
Battery
1300mAh (Li-ion Battery)
Transmitter
RF output power
4W/5W
Modulation Type
16kΦF3E
Modulation Limiting
≤5kHz
Modulation Character
+3dB / -3dB
Spurious Radiation
0.75μW
Adjacent Ch. power
≥65dB
Max Fr. Deviation
≤5kHz
Occupied Bandwidth
≤16KHz
Receiver
Receiving Sensitivity
0.25μV
Adjacent Ch. Selectivity
60dB
Inter-modulation
60dB
Co-channel suppression
-8dB
Audio Response
+2dB -10dB
Audio Output
500mW
Audio Distortion
≤3%





PACKAGE INCLUDE :

1 x TYT 800 ( VHF 136-174Mhz )
1 x 7.4v 1300mah Li-ion Battery Pack
1 x VHF Antenna
1 x Belt Clip.
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )
* Correct Plug For Your Country *
1 x Earpiece
